    wofati eco building

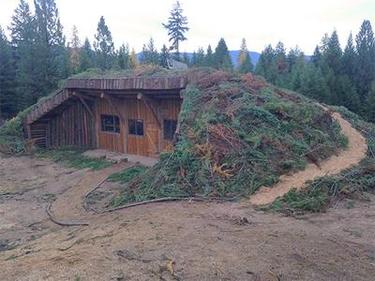

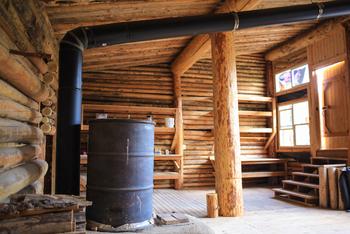

    Imagine living in something that looks like a log cabin from the inside, but:

    • it has more light
    • it doesn't need heat or A/C
    • it is three times faster to build
    • it costs about five times less

    When it comes to eco building, there appears to be a lot of enthusiasm for straw bale homes and for cob homes. In either case, this is usually nothing more than replacing the exterior walls. Cob could also be used for interior walls, but for the moment, I would just like to examine the simpler case of replacing the exterior walls.

    With straw bale, the cost of the materials for the exterior walls is higher than a conventional home. The cost of labor is significantly higher, although some of the work can often be replaced by workshop labor. Unless you live on land that produces straw and you have a baler, you will have to buy straw and have it moved to you. The beauty of straw bale is the insulation. Straw itself is not a particularly good insulator, but a really thick wall of it is. Of course, to stay warm on a really cold day, it helps if you're sealed up inside like being in a ziplock bag.

    With cob, you will need a source for clay and good sand. Sometimes you are on land that has clay, so then you just need a dumptruck load or two of sand. And the amount of time to build a cob wall is far greater than conventional. The beauty of cob is that you can shape it to anything! And it is soooooo easy to do. If you can supply lots of time, you can build a fantasticly lovely home from cob.

    In the fall of 1970, Mike Oehler (pronounced "Ay-ler") lived in a crappy shack and struggled to stay warm. He decided that the following spring he would build a better place to live. He spent the winter drawing all sorts of designs to calculate heat efficiency. He also wanted to keep his materials costs low. He came up with a design that was unlike anything he had ever seen anywhere else. The result is a home built in 1971 with a total cost of $50.

    Later, Mike added on to that house and then wrote a book about it. His choice of title was so bad, that I avoided the book for more than a decade. Even the pictures on the cover bothered me. It was only after seeing so many other authors refer to the book that got me to look at a library copy.

    Mike's design eliminates many of the complexities of conventional construction. Further, if you live on wooded land, most of the materials consist of what you cut from your land when doing sustainable forestry thinning. No importing straw bales or dump truck loads of sand. In fact, everything you import could fit into one pickup load: some doors, some glass, some plumbing and electrical stuff - all of which you would bring in for any type of house.

    Mike then enhances his original designs to come up with a variety of ways to get sun into his structure from all directions, while keeping the costs low. After teaching dozens of workshops on his techniques, he puts the workshop on video. I have seen these videos. They are excellent.

    In a nutshell, Mike's design is a pole structure with a green roof. A green roof is usally more expensive than a conventional roof, but, if you can follow one simple design principle, you can dramatically cut the costs of the whole structure! The one simple design principle is: every drop of rain must always have a complete downhill soil path. Encountering the edge of the roof is not okay.

    I contact Mike and visit with him a bit. Now, his excellent design is easily confused with .... lessor designs. Designs which he thoroughly bashes in his book, but you will never find out about that if you cannot get past the title of the book (which is what happened to me). During our conversation, he told me that he wishes to now call his structures "Earth Integrated Structures". For the rest of this document, I am going to disrespect his wish and instead refer to these as "Oehler Structures".

    Next, I found a copy of John Hait's book "Passive Annual Heat Storage". In that book, John appears to extend Mike's ideas to include a cheap means to eliminate the need to heat. Basically, surround the structure with 20 feet of dry dirt to produce an enormous thermal mass. It's mostly laying down some extra plastic sheeting during construction.



    a conventional home

    conventional homecob homestraw bale home

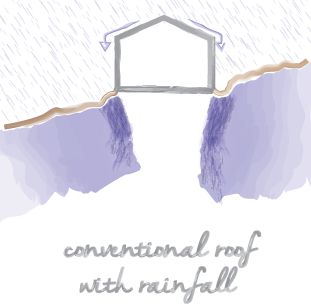

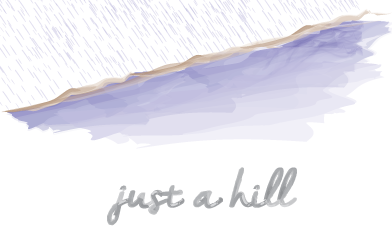

    If you assume that there is a little wrap-around ditch on the up-hill side, water is managed like so:
    conventional home with rain



    a stupid design that we will flush like the stinky turd that it is

    Did you know that most perfumes are made with the stink from skunks? Isn't it weird that something that smells nice is built with something so damn stinky?

    Due to the confusion that kept me from reading Mike Oehler's book sooner, I am now going to carefully tread into some dangerous territory. I need to express this mostly so I can define what a wofati is NOT.

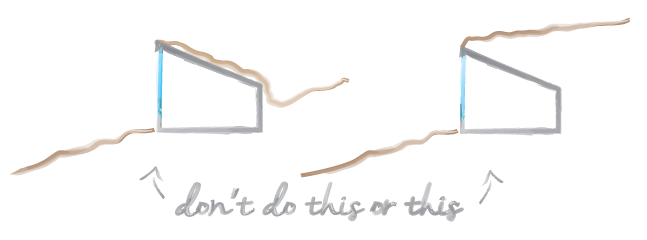

    Mike Oehler calls this "a first thought house". I call it "a don't-do-this house".

    don't do this (underground home)don't do this (underground home)

    People tend to think of the second pic more than the first. But where does all of the extra dirt come from?

    Now we add a bit of rain ....

    underground home with rain

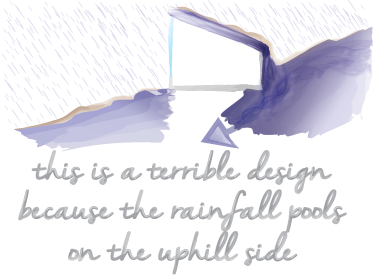

    Now you can see where all of the people with this design start doing their engineering. The first thought is to put french drain in the back. But french drain is designed to deal with a water table getting too high - not with too much water coming from above. So while that might help a little, it really doesn't work. The wraparound ditch around the back might help a little, but most of the water is already below the soil level.

    The bottom line is that people that use this design end up with something that smells like a musty basement and is so riddled with water problems that thousands of these homes are abandoned. I could go on about this, but Mike Oehler's book does a much better job of bashing this design.



    Evolving to a better idea

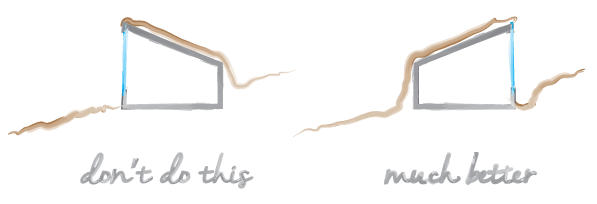

    Starting off with the "don't-do-this house" design, I want to fix the primary problem.

    don't do this (underground home)the first improvement

    I simply pointed it uphill instead of downhill. Don't worry, later I'm gonna poke a massive hole on the downhill side so I can still get all of that amazing view. The important thing to note is that I have now fixed all of the water problems (sound effects for a cheering crowd goes here). And when I say that I did it, I really mean, Mike Oehler (sound effects for a cheering crowd goes here also). The wraparound ditch gives us all the perks that we get in a conventional home. And everything that lands on the roof, goes downhill to where it isn't bothering me.

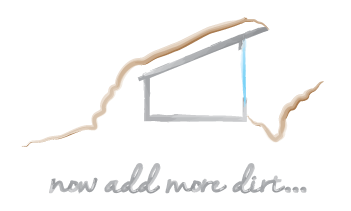

    Next, for a few different reasons, I want the amount of dirt on my green roof to be much thicker. To get the dirt, I'm gonna sink the house a little lower in the ground.

    the second improvement

    I also extended the uphill roofline a little and I added two more wraparound ditches on the uphill side.

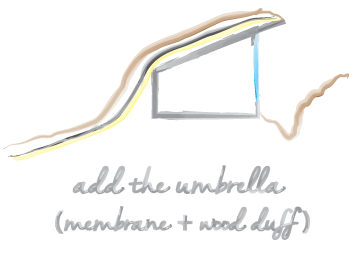

    The shell has a layer of polyethylene around it. This is that plastic sheeting that can be either black (called "visqueen" when I was a kid) or clear-ish. So the dirt that is just on the other side of the plastic is often wet. So if there is a heavy rain, or melting snow, that wet is brought right to the house and held up to the house.

    Remember how a straw bale doesn't have much insulative power, and yet a straw bale wall is considered to be far more insulative than a conventional wall. That's because it is so thick. The R value per inch of a typical straw bale wall is rated between 0.94 and 2.68. The R value per inch of fiberglass batts is 3.1 to 4.3. The R value per inch for dirt is 0.05 when wet and 0.33 when dry. Six times more insulative when dry! On top of that, dry dirt has the ability to retain heat for a really long time. John Hait's book goes into a lot of mathematical detail on this and he concludes that if you have 20 feet of dry dirt, you can carry the heat of summer all through the cold of winter. Thermal inertia!

    Well, I don't want to have a house that is 20 feet deep, and Hait doesn't suggest that. Instead, wrap this much dry dirt around more than half of the house. He has done this more than once and the result is a home that requires no heat.

    the third improvement

    So you have a layer of structure (R 2.5 to R 5), polyethylene on the structure, about 8 inches of dry dirt (R 2.64), about four inches of wood duff (R 5.0), another layer of polyethylene and then 20 inches of wet dirt (R 1). This brings our roof R-value to about R 11 or better - pretty good! Plus, a healthy dose of thermal inertia!

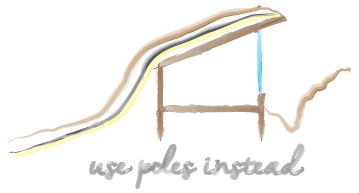

    Next - "don't-do-this house" designs are almost always made of cement. I don't know about you, but I've noticed most land doesn't have lots of cement lying around. But many homesteads do have a forest that needs thinning. And it seems that most of the time when the forest needs thinning, the price that the mill will pay for wood is less than what you might pay to get the wood to the mill. A lot of folks that need to thin their trees end up burning this wood! Such a waste!

    So rather than make this out of cement, I'm gonna make it out of wood.

    the fourth improvement

    Note that this is now a pole structure. Much stronger, in my opinion.

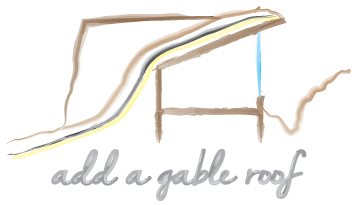

    But this still isn't a wofati house. It needs one more thing. What you see so far is a home that looks like a log cabin from the inside; requires little, if any, heat; can be built very fast and cheap. But it has light coming in from only one direction. Uphill.

    This is my feeble attempt at drawing in a gable roof to the downhill side.

    a wofati house design

    Here is a drawing from Mike Oehler's book, page 46 (with permission from mike). This shows an example of light from four directions. It also shows an example of a downhill gable roof - one of the key ingredients in a wofati house.

    Oehler house with a downhill gable roof

    And finally, let's throw a little rain on the wofati house. Here is the "don't-do-this house" next to a wofati house, complete with rain:

    underground house with rain   a wofati house with rain

    Note that the combination of wrap around ditches plus the overhang minimizes the amount of water on the uphill side. The extended polyethylene makes for a huge thermal mass downhill and directly below.



    where does the word "wofati" come from?

    Mike Oehler used a word from a crappy design to help define his design. I suspect that that poor choice eliminated 90% or more of the folks that would otherwise embrace his work. Further, when Mike tries to talk about his work, people automatically tune him out whenever he uses the word. Feel the mighty power of a single word!

    At the risk of sending you running for the hills, I'm gonna say it .... brace yourself .... ack ..... "underground". A lot of so-called "underground" homes are actually above ground homes with a green roof. So many feel like living in a basement. So many are abandoned because people cannot cope with the water problems, the constant chill and the musty dank of it all. And the moment you throw the u-word out there, damn near everybody runs away screaming - and for good reason!

    Mike's designs feel like living in a log cabin. Not a basement. Maybe it's the wood. Maybe it's that it's dryer.

    So here I am, combining Mike Oehler's ideas with John Hait's ideas and a few of my own. I've decided I need a whole new word to describe this.

    In the margin's of Mike's book, he quotes the letter from Chief Seathl (sometimes called "Chief Seattle") to the president, starting with "The President in Washington sends word that he wishes to buy our land. But how can you buy or sell the sky? the land? The idea is strange to us. If we do not own the freshness of the air and the sparkle of the water, how can you buy them?" As I read the letter in the margins and read Mike's book, I do sense a connectedness. This whole structure could be built by native americans hundreds of years ago. If the polyethylene could be replaced with .... something else (I'm racking my brain to think of something - maybe layered wood duff with enough wood ash to slow rot, followed by a layer of clay?), it could be done.

    So I want my new word to sound like something that could be native american. I have a bit of native american in my heritage. So I'm getting really jonesed about this connection! Some of the Navajo hogans had an earthen roof over a wood frame. The Pawnee, Hidatsa, Mandan, and Arikara had an earthlodge featuring an earthen roof on straw over a wooden frame. A British Columbia tribe had homes that were a wood frame with an earthen roof called a "quiggly" or "kekuli". Here in Montana, the natives lived in pit houses before they invented their portable houses which are now called tipis.

    I carried a scrap of paper with me for three months. I wrote down all of the words that described my design. I tried lots of things that turned out really lame. Then I decided to prioritize the whole list. And there it was.

    Woodland. The word "forest" suggests "forestry" which embraces a lot of things I don't care for. The word "woodland" reminds me of Ben Law's excellent books The Woodland Way: A Permaculture Approach to Sustainable Woodland Management and The Woodland Year. A forest is .... used. A woodland is .... something that you are part of. Well, the key to making this word the highest priority is that this whole design would be silly if not built on, or very near, a woodland.

    Mike Oehler. 80% of my design is standing on the rather brilliant shoulders of Mike Oehler.

    Freaky-cheap. There are lots of easy ways to design a house that is even more costly than Oehler's original design. In fact, Oehler is moving in that direction. He has been called on to design several houses and his designs have evolved into replacing some polyethylene with the more expensive EPDM (pond liner). He has also introduced the use of some commercial insulation. I, on the other hand, have come up with things that meet the same concerns that end up costing even less. I've run these ideas by Mike and he agrees that they are sound! (Yeah baby!)

    Annualized Thermal Inertia. John Hait's book is called "Passive Annual Heat Storage" - but what the title leaves out is that this design also brings a great deal of cooling in the summer. I think the phrase "Annualized Thermal Inertia" is more accurate.

    So .... W.O.F.A.T.I. .... but even though it is an acronym, I prefer "wofati". Ahhhhh .... the joys of making stuff up as you go ....

    Since I am making up this word, I get to define what it means. And not only do I want to define "wofati", but I want do define "wofati house", "wofati cooler", "wofati freezer" and "wofati animal shelter".



    wofati definition

    • 1) every drop of rain must always have a complete downhill soil path. Encountering the edge of the roof is not okay.
    • 2) There are two layers of polyethylene. The lower layer, which hugs the structure, and the upper layer, which defines the thermal mass that surrounds the structure. The upper layer must cover at least twice as much square feet as the available square feet in the structure.
    • 3) The uphill side has at least three open trenches to move water around the structure.
    • 4) The uphill side has a roof that extends at least three feet beyond the exterior wall.
    • 5) There is at least four inches of dirt between the two layers of polyethylene. There is at least sixteen inches of dirt on the top layer of polyethylene.
    • 6) The inner pole structure is made of logs.
    • 7) No treated wood is used in any of the structure.
    • 8) All polyethylene is surrounded on both sides by at least 10 sheets of newspaper. If the wood shell is unmilled logs or poles, much more newspaper must be used.


    wofati house definition

    • 1) has all of the properties of "wofati definition"
    • 2) At least 50% of the uphill wall is glass or some other material that allows light to pass through
    • 3) The house is not air tight
    • 4) There is a large gable roof to the downhill side with 50% or more glass or some other material that allows light to pass through
    • 5) The house is NOT "underground". This is an above ground pole structure with an earthen roof.


    wofati cooler definition

    • 1) has all of the properties of "wofati definition"
    • 2) includes venting tubes - much like what is used for a root cellar


    wofati freezer definition

    • 1) has all of the properties of "wofati definition"
    • 2) Includes a pluggable vent tube that runs through the core of the thermal mass. The idea is to open these tubes on days that are below 10 degrees.
    • 3) The upper layer of poly must cover at least five times as much square footage as the available square footage in the structure.


    wofati animal shelter definition

    • 1) has all of the properties of "wofati definition"
    • 2) Must be big enough to drive a tractor inside

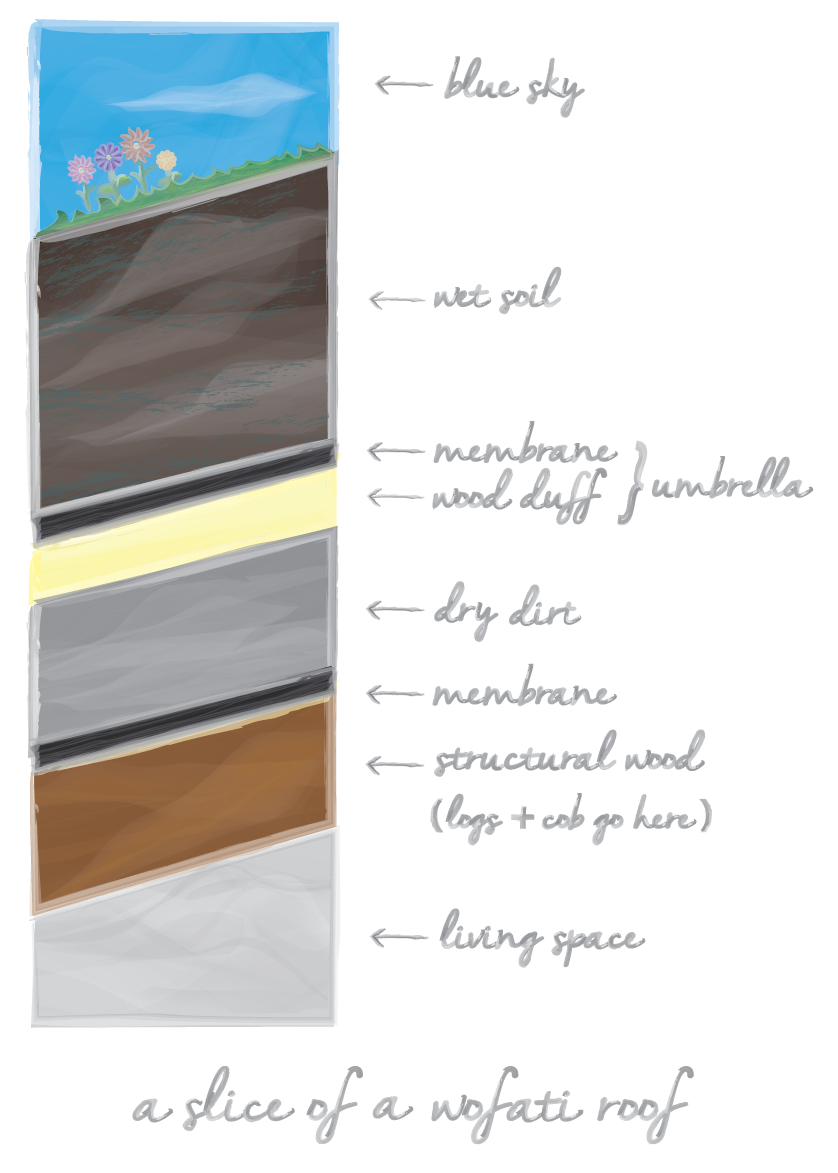

    the roof layers

    wofati roof layers

    The most important ingredient here is the polyethylene (poly) wrapped in newspaper. Mike Oehler used to put tar paper on the structural wood, and then poly on that. Then dirt, then another layer of poly and then the rest of the dirt. The tar paper is to protect the poly from getting slivers. The upper layer of poly could get a hole poked through it, but there is always the second layer as backup.

    The newspaper protects the poly from getting holes poked in it. Plus, newspaper has some pretty good water shedding capability of its own - so if there is a leak, the newspaper will help plug the leak.

    Wood duff is going to be pine needles, twigs, wood chips, saw dust, peat, moss, leaves .... anything with some insulative value. It must be dry when you put it on. And the material must be dry. You can use perlite or vermiculite if you want to. Or mix it in.



    where the wood meets the poly

    Sepp Holzer uses some similar techniques to build root cellars and animal shelters. I watched the construction of a root cellar where the walls were stone:

    Sepp Holzer's root cellar / animal shelter
    Sepp Holzer's root cellar / animal shelter

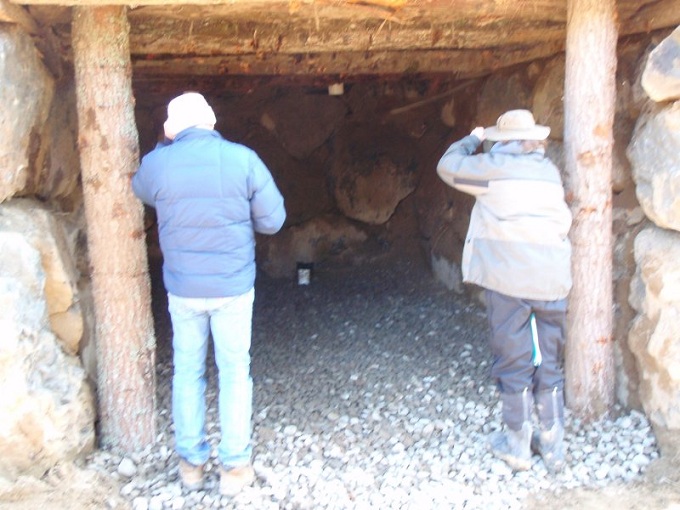

    A look deep inside
    A look deep inside Sepp Holzer's root cellar

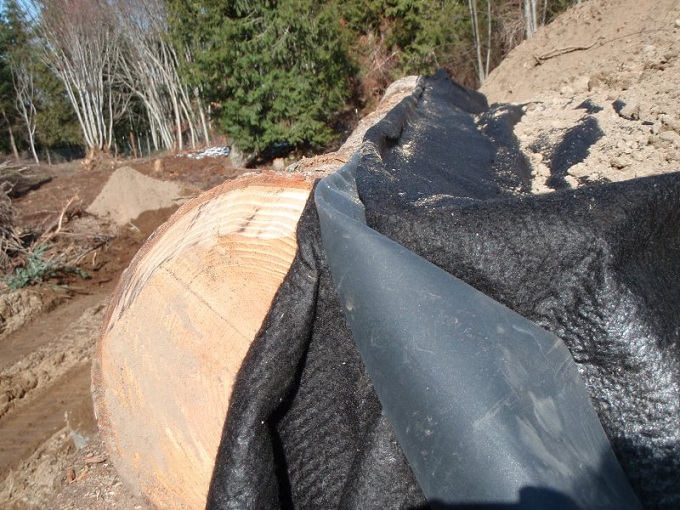

    The waterproof layers
    The waterproof layers for Sepp Holzer's root cellar

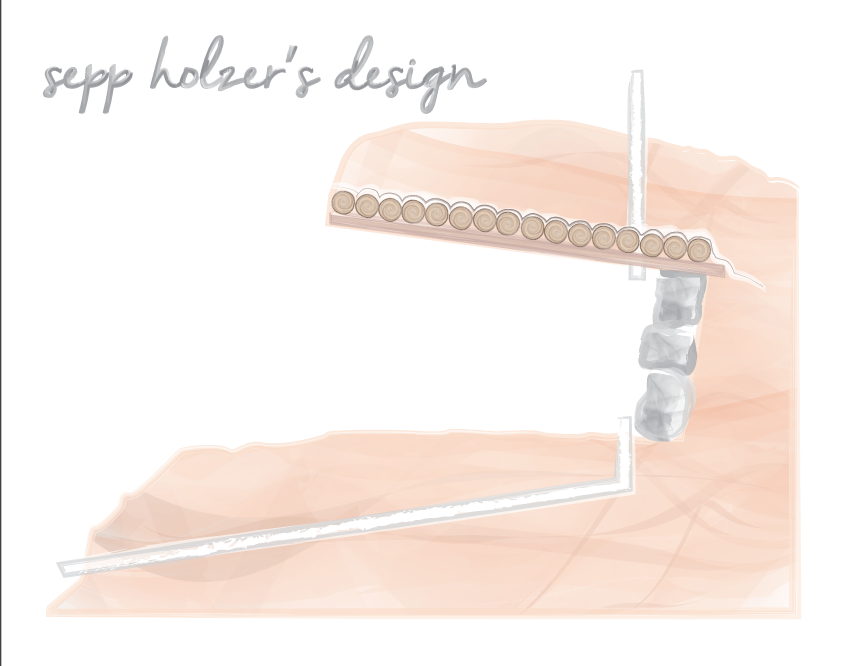

    Here is my feeble drawing of my understanding of what is going on
    Sepp Holzer's root cellar drawing

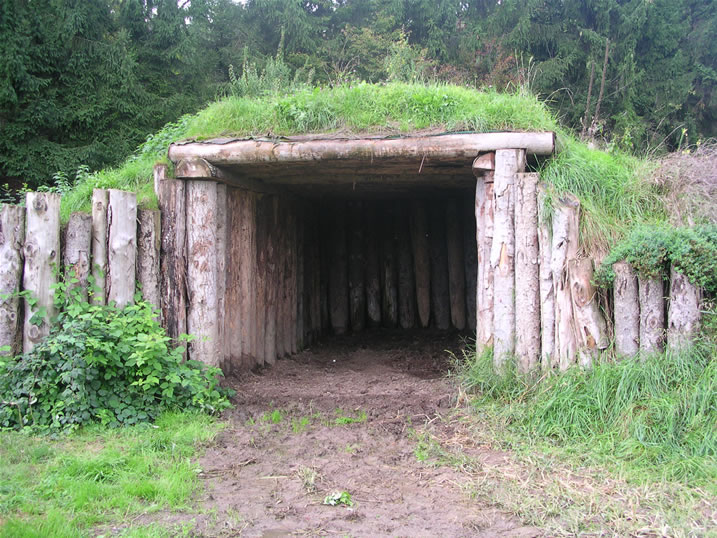

    A shelter Sepp Holzer built (in one day!) with all logs
    Sepp Holzer's log animal shelter

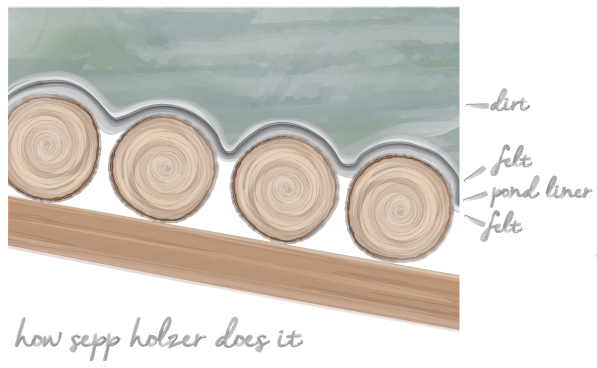

    Sepp's technique is to lay down to half logs that span the sides of the shelter. Then, on top of that, lay down about fifteen logs all snug to each other and then lay down felt, pond liner, felt and a meter of dirt.

    Sepp Holzer's log roof

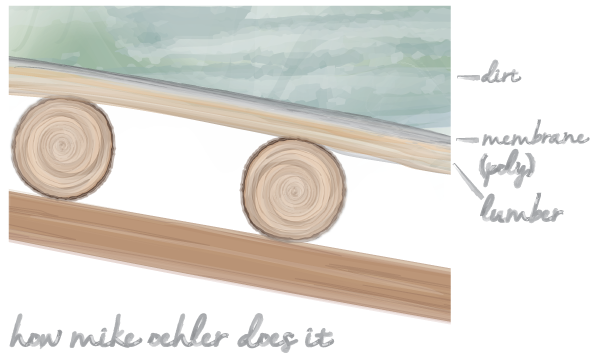

    Mike Oehler does something similar, but he puts gaps between the top logs and covers them with milled 2x (2x4, 2x6, 2x8, etc.). Then tar paper, then poly and then dirt.

    Mike Oehler's log roof

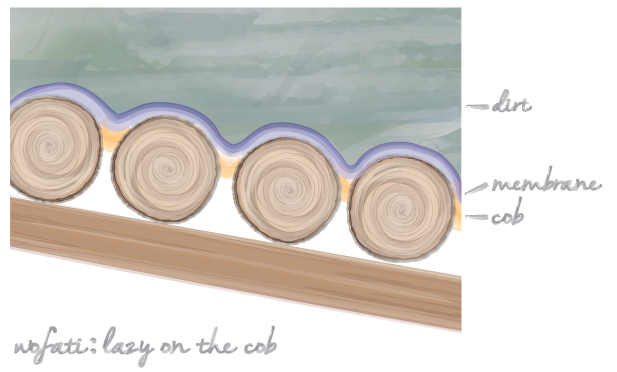

    I want to dodge paying so much for felt and pond liner. I also would like to dodge the toxicity of tar paper. Plus, I like the idea of using unmilled wood - since it is more readily available when doing tree thinning projects.

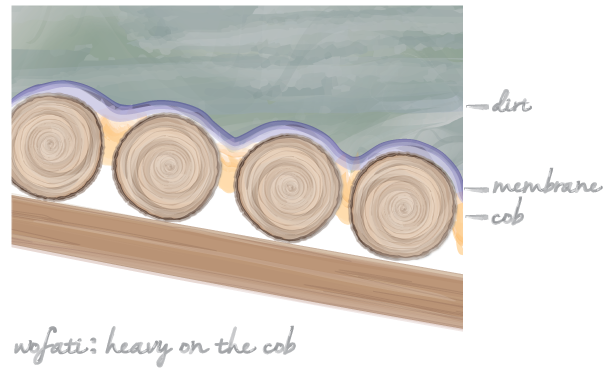

    One approach would be to use Oehler's technique only use two to three inch poles to replace the milled wood, and then fill remaining gaps with newspaper. Another way is to use Holzer's technique, filling in the low spots with small poles and then newspaper:

    wofati log roof

    Here is the important part: total cost for the roof is about $100 for the poly and $40 for hardware to hold the wood in place. The wood is free. The dirt is free. The newspaper is free. The wood duff is free. Plus, this technique covers about half the walls too.



    trivia break

    And now for a trivia break! Mike Oehler lives in north idaho. Sepp Holzer lives in Austria. Sepp came to washington state to give a presentation on "Ponds on Sloping Land: Microclimates, Microhydro, Aquaculture" and Mike Oehler attended!

    Mike Oehler attending Sepp Holzer's workshop

    The amazing thing is that neither of these fellas knew of the other fellas work before the workshop! They both came to very similar (genius) conclusions independently.

    Okay. Enough goofing off. Back to work.



    some possibilities

    The following pics are from a house built in wales. The use of these photos is subject to the creative commons license.

    I really like these pictures. By looking at these pictures, I can see the house in these pictures being easily modified to be a wofati house. Thus making it cheaper and faster to build. Although if you follow the link, I think you will be pleasantly surprised at just how cheap this house was to build (1000-1500 man hours and �3000). Click on any of these images to see the full size super jumbo original.

    example of a possible gable roof?
    example of a possible gable roof?

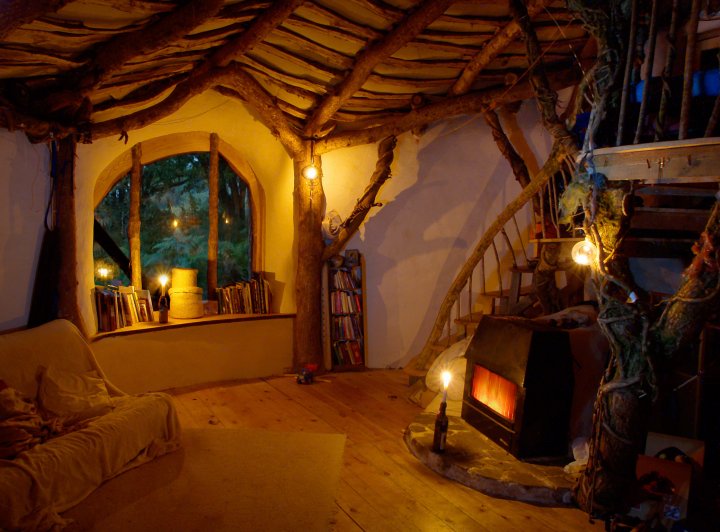

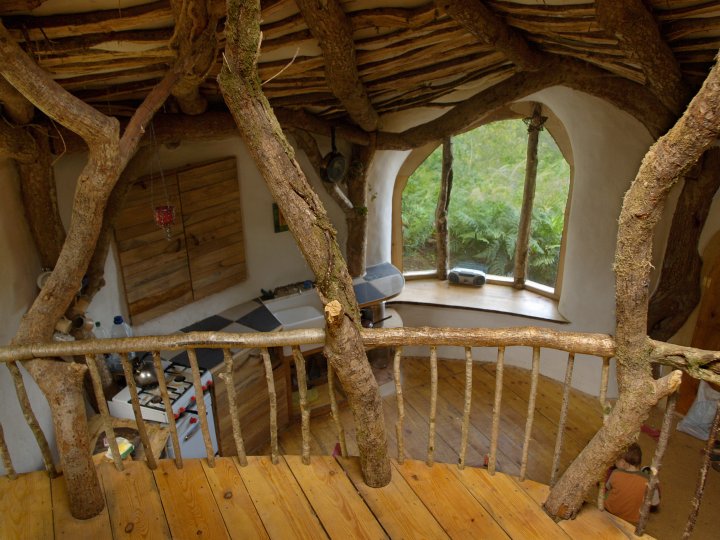

    view from inside loft
    view from inside loft

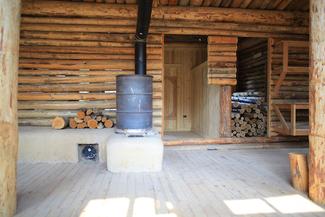

    view from inside
    view from inside

    side view drawing
    side view drawing

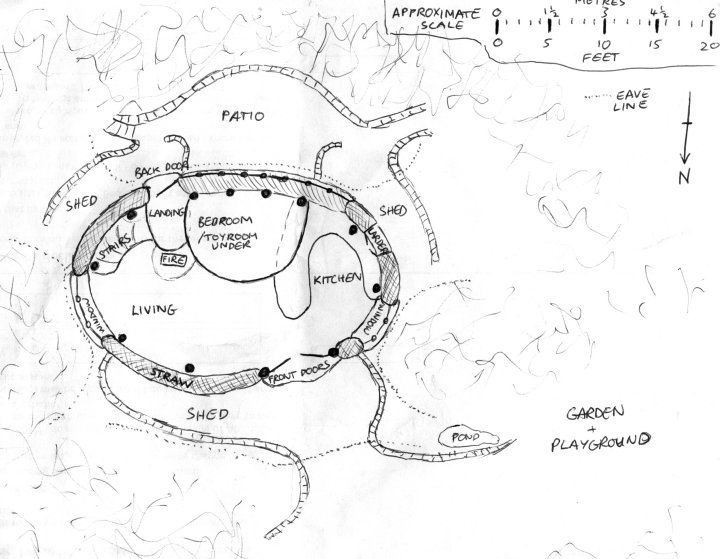

    rough plans
    rough plans



    Mike Oehler's books

    I strongly recommend that you purchase all three of the following:



    John Hait's book

    If you are curious about how details on annualized thermal inertia, or if you would like to see examples of an Oehler structure that is a little more conventional, then you would be interested in the book "Passive Annual Heat Storage". I think it has been out of print for a while, but the author sells PDF versions of the book on his web site: earthshelters.com. There is a free chapter of the book there. He also has videos, but I have not yet seen them. The author has also penned a short article with some excelling drawings that are worth a look.



    video of the $50 house and the $500 house

    In the spring of 2009 Mike Oehler invited me out to his property to have a look around. I took lots of pictures and videos. I hope to get them all on-line soon.

    This first video is about the core of his book. The $50 house that was later upgraded to the $500 house.



    This next video is about Mike Oehler's greenhouse book.



    summary

    You know what a log cabin is. You have seen some really rough log cabins. And you have seen some log homes that are amazingly upscale. The funny thing is that it seems like so many people live on 200 acres of timberland and then they just buy a log house from a thousand miles away. A couple of big semi trucks pull up, put it together, and then drive away.

    I suppose that this could fit in the same boat. But to really connect with your land, it seems it would have far more value to use the materials right on your woodland.

    This is easier, cheaper and faster than a log cabin. More light. Same view. Warmer in the winter. Cooler in the summer. And you're not living in a ziplock bag.

    If you live in a woodland, I cannot imagine any building technique that would be more eco than a wofati. This has more than 90% of the building materials coming right off the land it is built on. A tipi made of skins could be more eco I suppose. A log cabin could be almost as eco - if you build it Proenneke style. If there is a building style that is more eco, then I would really like to hear about it.

    There is gobs of discussion about all of this in the permaculture forums. Check out the alternative building forum for several threads of discussion along these lines.
