    raising chickens 2.0: no more coop and run!

    After years and years of scraping/shoveling/scrubbing chicken poop I now have a system where I don't scrape/shovel/scrub any chicken poop.

    After years and years of selling meat/eggs for just a hair more than I paid for the feed, I've almost eliminated feed costs.

    After years and years of not being able to take a few days away from the chickens, I now have a system where I can go more than a week.

    At any given time when raising chickens I thought what I was doing at that time was "the best" only later to learn of something I like better. Now, when somebody asks about my opinion on the way they are raising chickens, I find myself tongue-tied. I see their chickens standing in shit all day, eating feed made from grains (and other things) considered too awful for human consumption. The feed is often medicated and loaded with vitamins and minerals that somebody thinks is good for the average chicken - it has to be because what the chicken really wants to eat is not available to the chicken. Rather than say "Ick" I want to paint a picture of something healthier that would be easy to do. What I have to say cannot squeeze into a minute. And there is so much that has to all come together just right, that without a script I doubt I can pull it off. So this is my feeble attempt at that script. To try and express my opinion on what I think is a better way of raising chickens in one big gob.

    To build a foundation, I need to first explore the other ways that I'm aware of raising chickens. There are a lot of techniques out there. I've tried nearly all of them. I've visited a lot of farms and a lot of city coops. I've had a lot of people ask me what I think of their approach. And usually my answer is not the answer they were hoping for.

    logic, reason, passion and raising chickens

    Some feedback on the article (and there is a point to be made after the feedback):

    Hooooooo doggy! I'm way more interesting than I thought! :) The point I want to make by sharing this is: This web page is one big steaming heap of my opinion. The whole site, really. This is my feeble attempt to paint a picture of something in my head using nothing more than the english language and a few pictures. I have tried to carefully qualify everything as observation, speculation, experimentation or pontification. Surely there are other folks with different experiences and philosophies. I encourage you to read their stuff too. Since writing this article, I have learned that the passions surrounding how one might be raising chickens is coming close to the passions one might have about religion!

    I'm going to start off examining the base approaches of raising chickens, then cover a lot of the other details (breeds, predators, city limitations, improving production, lowering costs, etc.) And ... at the risk of finding mobs with torches and pitchforks beating on my front door ... I'm also going to mention what I don't like about these systems.

    This document is a work in progress. While I have conveyed what I think is the most important 90% that I feel compelled to share, this document is only about half done. Your feedback is appreciated.



    concerns about the way most people are raising chickens

    The moment you put an animal in a cage or behind a fence, you are taking responsibility for the welfare of that animal. If you are a person of conscience, then you want to treat the animal well - possibly giving it a life better than if the animal were on its own in the wild. Does this imply that every person of conscience who has caged any animal has the arrogance to believe that they can improve upon nature's designs?

    We can attempt to protect the animals from predators - this is easy to wrap our heads around. We can attempt to provide food that is better than what they would find in the wild. But wait .... we cannot seem to agree on what is best for humans to eat, let alone another species that does not speak our language. Some simple trial and error reveals what foods are preferred or result in "progress," but a lot of this information is being contested/disputed regularly.

    The first domesticated chickens were plucked from the jungle. For thousands of years, chickens have been bred to survive non-jungle situations. But when they get loose they rarely survive anywhere on their own but in the jungle.

    "Dammit! The chickens got out and wiped out the strawberries!" Since chickens are driven to choose what to eat based on instinct, it would seem that the strawberries may have supplied something that was not in their "chicken feed". Consider for a moment being put into a cage where your only food is moldy "purina human chow" (everything your human needs for growth and reproduction - now with ground up minerals!) and your only drink is dirty water. And just out of reach of your cage is fresh strawberries. This image would not be complete without a farmer saying "I must be doing a good job of raising these humans, because most of them haven't died!"

    The jungle comes complete with polyculture foods all year long. Greens, bugs, fruits, grains and more. Mostly fresh. Something we cannot do all year because we have winter. Most chicken feeds eliminate three out of four of these - leaving only grain. And that grain is dried grain - not fresh. Since we have learned that grain alone makes for a sickly chicken, "chicken feed" also contains dried legumes and a vitamin/mineral mix that contains the vitamins and minerals that we are aware of that we think chickens need.

    I see people build massive, elaborate stuff for raising chickens that deprive them of fresh foods or bugs even in the summer. Or natural sunlight. Or have them standing in their own poop all day. Or, worse, the chickens are killed by predators.

    And this is the norm.

    Therefore, I am concerned about the way most people are raising chickens.



    six approaches to raising chickens

    These are all of the methods I'm aware of for raising chickens. All of these can be done in the city or on a farm. And lots of folks come up with combinations of these, like using a coop and run, but letting your chickens free range once in a while.

    • factory
    • coop and run
    • chicken tractor
    • truly free range
    • pastured poultry pens
    • pastured poultry paddocks

    I'm a strong advocate of the last one: paddocks. Later I'll go into a lot of detail of why I like paddocks so much more than the others. But, first, I want to make up some metrics to better help me describe why I like the paddocks approach so much.



    raising chickens: metrics

    I've tried to come up with a way to represent these ideas numerically. For comparison. So rather than just "yes" or "no" I'm trying to find a way to express how much better one way is over another way. I've tried to use a scale such that the value 10 is best. These numbers are entirely made up by me and are a numerical representation of my opinion.

    vegetation factor

    How much quality vegetation is available to the chicken.

    • 0 = none
    • 10 = so much that the chicken doesn't eat any of the provided chicken feed.
    • negative values represent feeding toxic plants to chickens.

    This is the strongest driving force to me. If I can get my feed bill near zero, then I have increased my profit margin by a factor of 8 or so. Plus, I am powerfully driven by the idea of my animals eating from a polyculture.

    bug factor

    Nearly half of a chicken's natural diet is bugs. The more bugs a chicken can eat, the less feed I have to buy.

    • 0 = no bugs are available
    • 10 = the chickens get their fill with plenty of bugs to spare

    And this might be a good time to point out that when I see "100% vegetarian diet!" on a carton of eggs, I think "we are raising chickens to suffer to satisfy the passions of ignorant twits!" I have yet to see a package of eggs with the words "diet includes bugs and other meat".

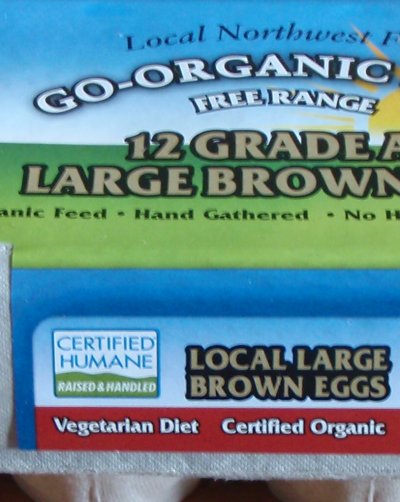

    What's funny about the egg carton pictured is right next to "vegetarian diet" is "certified humane".

    egg carton with words 'vegetarian diet' proudly displayed

    poop cleaning factor

    How much effort is exerted in cleaning up chicken poop

    • 0 = fixed coop
    • 10 = no effort

    poop hygiene factor

    • 0 = every moment of every day the chicken is standing on poopy bits and breathing in amonia
    • 10 = the chicken is never standing on poop and the air is as fresh as it can get

    work factor

    • 0 = about 4 hours per week for 25 birds
    • 10 = about 2 minutes per week for 25 birds

    natural habitat factor

    • 0 = factory farms
    • 10 = completely loose in a jungle

    confinement factor

    • 0 = factory farms
    • 10 = truly free range

    food cost factor

    • 0 = factory farms
    • 10 = the chickens do not eat purchased food


    raising chickens in a factory farm

    Layers packed into small cages, meat birds in huge warehouses. Poop and stink everywhere. No natural sun. The so called "free range" birds are given a patch of grass, but it seems so alien to them, they choose to not take advantage of it - they would rather hang out by the feeder.

    The following pics are so gross, they are intentionally left small. After all, this isn't really what this article is about, but it is presented as a reference. You can click on any of the pictures to get a full size pic. I would like to thank farmsanctuary.org for freely sharing these images.

    factory farm layers
    factory farm layers

    more factory farm layers
    more factory farm layers

    factory farm layers poop
    factory farm layers poop

    factory farm meat chickens
    factory meat chickens

    more factory farm meat chickens
    more factory meat chickens

    vegetation factor: 0

    bug factor: 0

    poop cleaning factor: 0

    poop hygiene factor: 0

    work factor: 2 - I imagine that systems are optimized to keep the level of work low

    natural habitat factor: 0

    confinement factor: 0

    food cost factor: 0

    A cute couple of videos showing factory farm issues - with "Moofius" and "Leo". There are some innacuracies, but, it's still fun to watch.



    raising chickens with coop and run

    Exactly one non-portable chicken coop and exactly one non-portable chicken run. Probably the most common way to be raising chickens. This is, no doubt, a huge step above and beyond what the factories do. An excellent first step. And while I embrace this technique as something that can be "pretty good" I hope to impress upon you by the end of the article something I think is better.

    I wish to express that we all have to start somewhere. It is better to have something like everybody else the first time and learn by it, than to shoot for perfection the first time and never be raising chickens at all! Coop and run is how I was raising chickens as a kid. It was how I did it when I was first raising chickens as an adult. I think that whenever somebody first has the thought of raising chickens, this is what they imagine.

    (trying to get pictures of existing coops and runs)

    This is my rendition of a typical coop and run in the city. Although it is usually the same for folks on a farm. The point of this image is the part that is brown. That designates an area where stuff doesn't grow anymore. For most coop/runs I have seen, the entire run is without vegetation.
    coop and run in the city

    vegetation factor: 0 to 7 - I have seen coops and runs that were too small, so every spec of vegetation was utterly gone. So the vegetation factor would be the same for a factory farm: zero. Although I have never seen it, I can imagine a chicken run loaded with plenty of variety of plants edible to chickens. But without the element of paddock shift (more on paddock shift later), the vegetation cannot do nearly as well.

    bug factor: 1 to 3 - With a really small run, the chickens will wipe out all of the bugs and then they only get those bugs that happen to come through the fence. With a really big run, the same thing happens, but a bigger fence means more bugs will find their way in.

    poop cleaning factor: 0 to 1 - You can make it a little easier on yourself if you can pile lots and lots of straw or sawdust in the coop. Maybe the lower layers will eventually compost and you'll have less muck to muck out (some folks do this compost trick with the idea that it will warm the coop in the winter - it works, but I have concerns about it too). Still ... some day you have to get all of that poop out of there. What an awful job. I would think that a lot of people would switch to the paddock system for this one reason alone! If the run is too small, you might have to shovel poop out of the run too.

    poop hygiene factor: 0 to 4 - Most non-portable coops STINK! Yuck! Ick! Damn nasty! To me, this seems just plain wrong. The only shelter that the chicken has is a disgusting health hazard. Often, the ground is covered in poop and there are even little poop mounds under the roosts. Smaller runs are sometimes one big layer of chicken poop. Better coops and runs are often better by being much bigger and/or getting cleaned frequently. Sometimes daily. Some coop designs have a mesh bottom where most of the poop falls through to a compost pile underneath. But there is still poop on the wire mesh and there is still that awful amonia smell coming from the pile.

    work factor: 1 to 6 - Generally you pack in feed and water twice a day. Some folks scoop poop every day, some folks scoop poop more like once a month. It is possible to have a watering system and bigger feeder set up to cut back on the feeding chores. And if your coop has a mesh bottom, you might be able to just throw straw or sawdust onto the poop pile once a week - but eventually that pile has to be dealt with. And you are still going to need to clean that mesh once in a while.

    natural habitat factor: 2 to 6 - Even the worst coop/run combo is a big step up from factory farms. I can imagine a massive chicken run loaded with 20 trees and loads of bushes and all sorts of polyculture edible growies. Unfortunately, the chickens will eventually have an over impact on a lot of those growies and the quality will slowly degrade.

    confinement factor: 1 to 6 - Granted, the worst coop/run is far, far better than a factory farm. But ... wouldn't a loose chicken be ten times better off than being in the worst coop/run? Hence the value of "1". I've never seen a run that I would give a value of higher than 3, but it is theoretically possible to have a really huge run - so I'm allowing a value of "6" on the high side.

    food cost factor: 0 to 3 - Nearly all coop/run situations provide zero to near zero vegetation food for the chickens. But .... a freaky huge run loaded with excellent plants is possible. Any grains or annuals will probably be wiped out before they can get very big. But some good trees could provide a fair amount of food.

    A paddock system would have a micro coop that you can drag around from paddock to paddock. Easier and cheaper to build than any of the non-portable coops I've seen. And since the micro coop is portable, there is no more mucking out the coop and the vegetation under and around the coop doesn't get wiped out.

    Raising chickens in the exact same area day after day harbors diseases.

    Since there is loads of chicken poop in the area and a lack of plant growth to take in the manure, the poop is headed for the groundwater supply.

    The following picture is provided with permission from happyeggs.org. I think this is an excellent example of a typical chicken run that has been in use for more than a few months.
    a typical chicken run
    Note the pits. That's where the chickens have scratched and scratched in the same spot for months. The upside is that they make themselves some lovely dust baths - something that chickens need. Note also - no edible vegetation in the run although there is vegetation outside of the run. The fencing appears to be some pos/neg temporary electric fencing - excellent for a paddock shift system! If you go to their site and look, you will see that they have about 20 chickens and they have room to spare. These folks could take their existing fencing and make a paddock about half the size of this one on fresh vegetation; then make a new paddock like that once a week and move the chickens to the new paddock. They could probably easily have five paddocks like this. The chickens would then constantly be on edible vegetation and get far more bugs. Plus they would have less chance of getting sick being in the same place all the time and ... and ... and ... well ... I have lots more to say about this, but I'll say it all later.

    This picture is of my first chicken run (as an adult) from a long time ago. You can see that there is a LOT more vegetation outside of the run. Proof that the chickens do eat this stuff. Consider - the more of this stuff they eat, the less your feed bill is.
    my old chicken run with field fence
    Note how the chickens are down to the dirt under the bush. Also note how the vegetation inside of the run is less diverse than the vegetation outside the run: chickens have preferences - there were lots of "weeds" outside of the run, but only grass and the serviceberry bush inside the run. The chickens like "weeds" better than grass. The fencing in this case is 6 feet tall field fence. It keeps in about 95% of the flightiest layers.

    Optimizing this sytem: (TODO)



    raising chickens with a chicken tractor

    typical chicken tractor
    a typical chicken tractor design

    This is generally a small, portable pen about three feet wide and six feet long with no bottom. You keep three to six chickens in it. The reason it is called a tractor is because it is used a bit like a rototiller (I think "chicken tiller" or "chicken plow" would probably have been more accurate - oh well). The idea is that you leave this pen in one spot and the chickens will eat all of the vegetation and will scratch for bugs and stuff. In the end, it is lightly tilled and covered in chicken poop - all ready for you to plant your crops!

    There are people who do not use a chicken tractor structure this way. They use their chicken tractor structure as tiny salatin-style pen, which I discuss later. This technique is sometimes referred to as a "chicken ark". For this section I am going to refer strictly to the chicken tractor used to eliminate all vegetation. For the "chicken ark" style of use, please refer to the salatin-style pen section.

    typical chicken tractor
    another pretty common chicken tractor design

    The pictures below are from the Washington State University test fields: the person giving the tour bounced back and forth between calling these chicken tractors or salatin-style "pastured poultry" pens. Although these are definitely bigger than anything I would call a chicken tractor, they are also smaller than anything I would call a salatin-style "pastured poultry" pen. The important thing is the clear demonstration of my concern with a chicken tractor. The first pic shows where the tractor will be put tommorrow
    chicken tractor or maybe a salatin-style pastured poultry pen
    The second pic shows where the tractor was yesterday. chicken tractor or maybe a salatin-style pastured poultry pen
    The important part of this pic is to note how much greenery was consumed yesterday. These are about five feet wide and ten feet long. With 35 chickens in each. That, in my opinion, is way too many chickens for such small pens. I think that such small pens should have no more than 15 to 20 birds and should be moved at least twice a day. Salatin recommends that the birds consume about 30% of the vegetation. This looks more like 90% to me.

    While the WSU pictures show some of my concerns about raising chickens in chicken tractors, I do have to say that in this picture, WSU has mitigated my primary concern even though you might not be able to tell in the picture. First, the chicken tractor concept is to eliminate ALL vegetation - which clearly is not done in this picture. Second, I happen to know that this is not a normal pasture. This is a test plot. A pasture would contain 10 to 100 plant species - a few of which would be toxic. This test plot contains only clover and rye. Neither of which is toxic to chickens.

    While I have seen many cases of chicken tractors eliminating all vegetation from a polyculture, I did not think to take a picture of it.

    Please don't ever use a "chicken tractor" to remove all vegetation. This may (debatably) be good for your garden, but I think it is a terrible way for raising chickens - as I will explain below.

    a whole different meaning to the term 'chicken tractor'
    I asked for more pics here and somebody sent me this. Too cute to throw out.

    (if anybody has chicken tractor pictures I can use here, please let me know)

    vegetation factor: -2 (negative two) - that's right, this can be worse than a factory farm. Consider that in general, 40% of what grows on the ground is probably good for chickens to eat. 30% is slightly toxic and the rest is moderately toxic to very toxic. Since chickens will instinctively eat what is good for them, they start off really great! But once all of the good stuff is gone, then they eat the slightly toxic stuff. And then they are walking the edge between craving greens and the only greens being poison - so they slowly eat the poisonous greens - slowly enough so that they don't die. They might not even show any signs of being ill. But you probably do notice that the last few bits of green seem to last 20 times longer than the first bits of green.

    bug factor: 1 to 2

    poop cleaning factor: 8 to 10 - there is no bottom, so rather than cleaning poop, you just move the tractor.

    poop hygiene factor: 1 to 2 - For a while, the chickens are on fresh vegetation. Before moving, nearly all the ground has poop. Sometimes the pen is not moved until there is a solid mat of poop.

    work factor: 1 to 3

    natural habitat factor: 1 to 2

    confinement factor: 1 to 2

    food cost factor: 1 to 2

    About half the feedback I get on this article is bashing me for bashing chicken tractors. (TODO)

    Optimizing this sytem: (TODO)



    raising chickens truly free range

    I have to put the word "truly" in there because factory farms use the phrase "free range" to mean something really stupid.

    The idea here is that your chickens have 24x7 access to your whole place. On the farm, you probably have no fence and the chickens just don't go too far from the food. In the city, you might have a fenced in yard and the chickens just stay in there.

    Usually there's a coop where the chickens go to lay eggs and to roost every night. If so, then you have all of the hassles that come with the coop. If not, then you have all of the hassles that come with finding eggs or finding the chickens when it is time to harvest.

    vegetation factor: 2 to 10 - How to get a 2 is pretty obvious. To get a 10, you have a rich polyculture that has far more food than the chickens could eat.

    bug factor: 6 to 10

    poop cleaning factor: 0 to 10 - Even if you don't have a coop, there will be poop all over everything where you don't want poop! At first this was "3 to 4" and then I had some people write to me to say that they had terrible problems with poop all over all sorts of things where they didn't want poop and it was far worse than the worst coop! They implored me to discourage folks from raising chickens with a free range approach due to the endless poop everywhere. And then I had people write to me to insist that I should give a value of 10 since they have personally never seen any chicken poop with their free range chickens. I suppose if you had some nearly feral chickens this could happen. So after a bunch of conversations I'm opening it to the full range, but I think the average is gonna be 3.

    poop hygiene factor: 3 to 10 - Even if you don't have a coop, you will find that the chickens will want to hang out in the same place day after day and make a hygiene issue. Usually right on your porch. They like you. Again, a couple of feral-ish chickens on lots of acres will be what scores a 10 - but this isn't very common.

    work factor: 3 to 10 - Even if you don't have to feed or water them, you still have to clean that poop! Again, I put the number "10" here because of the nearly ferral element. But I really think "3" is the most likely.

    natural habitat factor: 6 to 10

    confinement factor: 10

    food cost factor: 4 to 10

    The chickens are everywhere. Here they are unmulching some fruit trees:
    free range chickens

    I set a piece of plywood on the porch while I came inside to have lunch. In no time at all, the chickens turned it into a roost and pooped on it
    free range chickens looking in through the kitchen window

    Reshaping a pear tree. Note that the mulch is now all gone.
    free range chickens on a pear tree

    Several white rock roosters turned out to think they could take anybody down. Even me. They would attack and attack and attack. Until they took that special trip to the soup pot.
    free range chickens - a white rock prepares to attack

    This was a lovely place to sit until it was perpetually covered in chicken poop:
    free range chickens on a bench

    These turkeys found some perfectly good hay and straw to poop on:
    free range chickens

    The weird thing about this picture is that the turkeys really wanted to spend all of their lives about 20 feet due south from this point, sitting on the porch. A snow shovel and a scoop shovel were kept on the porch and turkey poop was shoveled off twice a day. So gross:
    free range turkeys

    Here is a wonderful upside to raising chickens truly free range - every once in a while, a chicken can hide a clutch of eggs from us and then pops out with some chicks:
    free range chickens

    Free range chickens try to eat all of the dog food and cat food. Watch out!

    Free range chickens can wipe out your garden.

    Soils and pastures will do better when given a chance to rest between visits from the chickens. With free range, there is no way to have that rest.

    Because of trying this, I now have chicken scratches all over my car - they attempted to roost on the bottom edges of windows, only the window made it hard to do that - so they would desperately try to keep from falling off by using their claws.

    If you find an egg in an odd spot, don't eat it - you have no idea how old it is. I would find eggs on my workbench.

    Chicken poop on my porch, in my shop, on my workbench ... it's just everywhere ... they started nesting in the baler.

    When they are spread out in the day, it's harder to protect them from predators.

    Optimizing this sytem: (TODO)



    raising chickens in pastured poultry pens

    a standard salatin-style pastured poultry pen
    a standard salatin-style pastured poultry pen

    Joel Salatin is a brilliant man! His book Pastured Poultry is excellent. In the book, he describes making a pen that is about 10 feet wide and 20 feet long. He puts a bunch of chickens inside and then moves the pen one pen length every twelve hours or so. The chickens eat a fair amount of the pasture and bugs and leave behind a bunch of chicken poop. This cuts his feed bill about 20% which adds up to profit!

    vegetation factor: 1 to 3 - lots of pasture stuff but no trees, shrubs or stuff that doesn't do well in pasture. Because it is such a great system, I want to give a higher number. But I think the very best pastured poultry system might cut the feed bill by 30% - so the highest number I can give is a 3.

    bug factor: 2 to 3 - when the pen is freshly moved, 90% of the bugs in the pen are probably consumed in the first 20 minutes. Then the chickens wait for bugs to happen to pop into the pen.

    poop cleaning factor: 10 - a perfect score. How could there possibly ever be any poop to clean?

    poop hygiene factor: 6 to 8 - After six hours, there's a fair amount of fresh poop right where the chickens are standing.

    work factor: 0 to 3 - All the feeding and watering, plus, move that pen twice a day every day. Some folks might do just once a day. And the pens are generally not too terribly close by.

    natural habitat factor: 2 - lots of excellent sunshine, but a chicken is a forest animal.

    confinement factor: 3 to 4

    food cost factor: 2 to 3

    I used pastured poultry pens for several years with moderate success. I once heard a fella suggest that rather than move the pens, park an empty pen next to a full pen and then open the doors between the two: the chickens will run into the new pen to get the new grass! It works great! And eliminates the problem of when you drag the pens, the chickens all wanna run away from you so they end up and the opposite end that is dragging - I constantly worry that they will get trapped under the edge that is dragging.

    Here is my first design using the "door technique". I used PVC pipe which made it plenty lightweight.
    portable chicken pen made from PVC
    I came up with about five design improvement ideas, but at the end of the first season, it started to break a lot. It turns out that most PVC is not UV resistant. The following season it just crumbled - it turns out the most PVC also hates temperatures of 20 below.

    Having it be very lightweight is important to me. The lighter it is, the easier everything is. I came up with an idea using cattle panels, but they are kinda heavy. And then I got the idea of making them modular. One pen could be made of three "modules" with two ends. When I set up a new pen, I could just lift one "end" between the two pens, the chickens run through and then the front end of the old pen becomes the back end on the new pen.
    portable chicken pen made from stock panels
    This worked very well! Except that as the season went on we started to figure out that the time to move the pens was kinda huge. Rather than about 10 to 15 minutes per pen (move the pen, new water and feed) it was about 25 minute per pen (moving the modules and bungying them together). I needed something faster.

    One idea was to buy one of those costco temporary garages and toss out the legs that make it high. I put it on 2x4 skids and drug it around.
    portable chicken pen made from a costco canvas garage
    Still too heavy.

    Poly pipe is really light. And fairly stiff.
    portable chicken pen made from poly pipe
    Well, not stiff enough.

    1/4 inch steel rod is stiffer. And I won't need much. I welded some together and held the shape with clothesline.
    portable chicken pen made from steel rod
    It rusted freaky fast. I ran through a massive collection of ideas about paint (it will come off) and oil and ....

    I put the steel rods through the poly pipe. The poly pipe protects the steel rods and the steel rods add rigidity to the poly pipes.
    portable chicken pen made from steel rod and poly pipe
    About at this point is when I got the idea for the chicken paddocks. I didn't even finish building this prototype - but I am convinced that if building a portable pen, this design is the best. Exceptionally lightweight. Cheap and easy to build. Should have an excellent lifespan.

    Optimizing this sytem: (TODO)



    raising chickens in paddocks

    Ahhhh .... now this is the ultimate solution for raising chickens. At least, it is the best (IMOO) that I'm currently aware of.

    There are two basic approaches:

    • 1) Four or more fenced areas. Put the chickens in an area and after 7 to 10 days move to the next area. Each area gets at least 28 days of rest until the chickens return. The more areas you have, they can be smaller and the time spent in an area can be less. If the chickens consume more than 30% of the vegetation, you have too many chickens or too small of a paddock.
    • 2) Get the same effect with portable fencing.

    Paddock shift systems often improve the paddock. Some folks report five times more vegetation when using paddock shift like the one suggested here. This is something that vegans do not consider when designing gardens with no animals. So ... imagine .... your garden without chickens produces less than your garden with chickens where the chickens eat 30%.

    Joel Salatin calls this system the "egg-mobile" and often has the chickens following cattle in a paddock shift system.

    The paddock shift system in the following image has some things that concern me - but! It is a paddock shift system.
    chicken paddock

    vegetation factor: 2 to 10

    bug factor: 5 to 10

    poop cleaning factor: 9 to 10 - Get a 10 if the micro coop has no bottom.

    poop hygiene factor: 9 to 10

    work factor: 4 to 10 - imagine moving the chickens once a week or so. Just open a gate and drag the micro coop to the new paddock. The chickens are anxious to get to the new space. Total time is about a minute. Oh sure, you probably should look in on them every day. But you don't have to. The lower value is for temporary paddocks - they take more times to set up and take down each week.

    natural habitat factor: 6 to 10

    confinement factor: 9 to 10

    food cost factor: 4 to 10

    Note that it is possible to have a 10 for every metric.

    Each paddock can contain trees, brush and annual plants that provide a plethora of people food as well as chicken food. When the raspberries are on, go into the paddock and pick all the raspberries. Then move the chickens in and they'll find whatever you missed and will eat the lower fruit that comes on during their time there.

    A teeny tiny dribble of a creek running through each paddock would be nice - it would save you from having to bring water in.

    To help paint a picture .... I've ... well ... painted a crappy picture.

    drawing of a city coop and run

    My rendition of a city lot complete with a pretty nice coop and run.

    Here is the same lot without the coop and run. Instead there are four temporary paddocks and a draggable (portable) micro-coop. The chickens spend 7 to 10 days in a paddock. Each area rests from the chickens at least 28 days. Each paddock is loaded with people food and chicken food. When the time comes to move the chickens, set up the new paddock and then create an opening between the two paddocks. Drag the micro-coop to the new paddock and the chickens will run to the fresh forage. Close the new paddock and take down the old paddock.
    drawing of a city lot using a paddock drawing of a city lot using a paddock
    drawing of a city lot using a paddock drawing of a city lot using a paddock

    Here is a picture of using temporary paddocks in a city lot. In this case, this person is using some short fence that is designed to contain dogs. She moves it every few days.
    city chicken paddock

    She gave me permission to pass on these words about her system:

      What you can see in the pic is the dry/eaten area right in front of the coop. That's where the coop has stayed in one position while the pen is moved several times in different orientations to the pen, so the area right in front of the coop gets a little "worn" which they can use as a shady dust bath area right under their ramp, but *not* cuz they are out of good forage anywhere else. You see the green grass to the left side of the pic where the pen goes now, you can not see the whole pen obviously its bigger. Last time, the pen came straight out front of the coop, you can kind of tell the grass right around the little bowl (for kitchen tidbits) is more eaten than the grass on the left side. That slightly worn grass is as bad as it gets before I move the pen as you seen in the fresh grass on the left.

      The pen is easy to move, I do it before I let them out in the morning. I *usually* (not always) do the work of locking and letting out due to aggressive urban raccoons.

      On the rare day when I am forced to leave them in for some weird reason, they eat nearly twice as much food when I refill it as when they are out, so I believe they are getting about 40% of their food from forage.

    (TODO) approximate paddock sizes

    (TODO) explore fencing types

    Optimizing this sytem: (TODO)



    raising chickens: the grand summary

    style vegetation
    factor
    bug
    factor
    poop cleaning
    factor
    poop hygiene
    factor
    work
    factor
    natural habitat
    factor
    confinement
    factor
    food cost
    factor

    factory farm 0 0 0 0 2 0 0 0

    coop and run done poorly 0 1 0 0 3 2 1 0
    coop and run done well 7 3 1 4 6 6 6 3

    chicken tractor done poorly -2 1 8 1 3 1 1 1
    chicken tractor done well -2 2 10 2 1 2 2 2

    truly free range done poorly 2 6 0 3 5 6 10 4
    truly free range done well 10 10 10 10 10 10 10 10

    pp pens done poorly 1 2 10 6 0 2 3 2
    pp pens done well 3 3 10 8 3 2 4 3

    pp paddocks done poorly 2 5 9 9 4 6 9 4
    pp paddocks done well 10 10 10 10 10 10 10 10

    Further discussion about coops, runs, tractors, pens or paddocks or raising chickens in general in this thread at permies.com.



    predator control

    When I moved onto my first farm, I was told that nobody in the neighborhood was able to be raising chickens because there was such a serious coyote problem. Sure enough, you can hear them howling and yipping every night. But I was dead set on raising chickens. I told the neighbors that I'll just build some super fence to keep the coyotes out - they told me stories of people with all sorts of amazing fences and the coyotes still killed all of the chickens.

    Research! I could find lots of people that had some wimpy fence and never had any predator trouble: "Do it like me! You won't have any problems! I promise!" I was tempted, but my gut said that these folks did not have the coyote challenge I faced and if I tried to do what they did, all of my chickens would be killed.

    And then I met a woman advocating dogs to protect the chickens. Which struck me as not quite right because not only were coyotes rather dog-like, I've heard of people losing chickens to dogs. This woman had the patience to carefully explain to me that there are certain breeds of dogs that have been bred for thousands of years to protect livestock, including chickens. These dogs would take on a mountain lion to save a chicken. And then the woman told me about how she had built what she was sure was a coyote proof fence only to lose every last chicken to coyotes. And then she got a great pyrenees dog and never lost a chicken to predators after that.

    After hearing from two more people with similar experiences with livestock guardian dogs, I bought a great pyrenees pup. Liza. Well, she wasn't a pure bred gret pyr. She had a little anatolian shepherd (another livestock guardian dog breed) and a pinch of saint bernard.
    great pyranees pup - liza

    On patrol with henry - a mutt. Henry always followed liza's lead so they made an excellent team.
    great pyranees liza and henry the mutt

    Liza and henry were both very people friendly.
    great pyranees pup - liza

    You could hear liza battle the coyotes nearly every night. First you hear the howling and then about 3/4 of a second later you hear liza running at full speed. About twelve seconds later you hear the howling replaced by "hyipe! yipe! yipe!" - she's run them off.

    She patrolled all night for all predators. And if the chickens make a certain noise during the day, she's right there looking to see if there might be any threat.

    I have a lot more to say about livestock guardian dogs. But for now, let me just leave it at: if you have acreage, a livestock guardian breed of dog is the way to go. Everything becomes much easier and cheaper.

    predator control without a livestock guardian dog (LGD)

    If you are not going to use an LGD, then this topic can fill a book. I'm going to only skim the surface of a few of the basics. I'll be happy to explore more details in the forum as people have questions. Maybe some day I'll expand on this topic a bit - but I kinda doubt it since I travel the LGD path.

    Before leaving biological control behind, I want to mention the use of llamas, donkeys and attack geese: I've heard lots of stories of success and and equal number of stories of failure. The failure stories make sense to me. The success stories make me wonder if the predator pressure may have been low. I think it is possible that there are ways to have llamas, donkeys or geese work to protect your chickens and I just don't fully understand it yet. Or maybe these folks have come across animals that just so happen to have a powerful passion to protect chickens - which leaves one to wonder how to duplicate the process. I have heard that for llamas to be effective, you need to have only one llama - otherwise, the llamas will protect only the llamas and nothing else. If there is only one llama, the llama thinks the chickens are its family and will protect the chickens. There is an excellent book (Livestock Guardians: Using Dogs, Donkeys, and Llamas to Protect Your Herd) that goes into a lot of detail about the finer points of getting llamas and donkeys to work for you. It also covers LGDs quite thoroughly, including all the bits and bobs about breeds. There has also been a fair amount of discussion here.

    Let's start simple. Raccoons. Raccoons climb and dig and I have heard that they can break "chicken wire". So they can climb over a fence - or they will even climb a tree to get in and climb a different tree to get out. So a physical barrier alone will be quite the challenge. I suspect that raccoons are the number one reason why folks stop raising chickens.

    The most common approach is to close up the coop at night and open the coop again in the morning. Raccoons are mostly nocturnal - and you focus your security effort on the coop. But now you have also added two chores a day that require you to be home on time. And sleeping in in the morning isn't particularly good for the chickens. And forgetting to lock them in at night ... well ... that depends on how often the raccoons test the lock.

    I've heard of folks setting up the coop door with a weight or a spring so that if you just pull a small pin, the door will open. And then setting up a wind-up alarm clock that will pull the pin in the morning. All of this so folks can sleep in a bit in the morning. Not a bad idea!

    Live traps don't work so good: first, you end up catching animals you don't want to catch. Second, if you catch the raccoon and take it far, far away, you'll find that that raccoon was keeping other raccoons away. So new raccoons come along a little later and you're back to square one.

    An electric fence can work very well. You have to make sure that your zapper has a powerful punch. After all, an electric fence is a psychological barrier. When the raccoon encounters it and you don't have a lot of pop, then the raccoon tries to decide if the pain will be worth it - or if it can find a way in without getting shocked. With a big pop, a raccoon thinks DAMMIT! .... RUN AWAY! RUN AWAY!

    Using electric fence on large portable paddocks works really well. You should never use electric fence for a small paddock. It's too stressful for the animals inside the paddock.

    Anything that works on a raccoon will also generally work on coyotes, dogs, foxes (canines), cats (all sizes), skunks and opossums. Although the canines are more apt to dig than raccoons.

    This cat (walter cronkite) generally eats a bird a day - but has never taken a chicken walter cronkite, the bird eating cat

    Weasels (which includes minks) will dig a little and climb a little, but what they are really great at is squeezing themselves through a tiny space and then eating the heads off of all of the chickens. One day all will be great, and the next morning you find all of your chickens have no heads. Weasels can also chew through wood a bit.

    Rats are a different sort of problem. They will take eggs and chicks, but I have yet to hear of a rat taking down a grown chicken. More on rats and mice here and here. Snakes can pose a similar problem - going after eggs and chicks.

    Raptors (hawks, eagles, owls, etc.) will take chickens and chicks. Some ravens will take chicks. Lots of shrubs and trees seems to solve nearly all of this during the day. A good coop solves the owl problem at night.

    A couple of odd contraptions I have heard about but have never tried, nor have I even heard of anybody trying them.

    • Motion detecting water squirt. Apparently, when something crosses its sensor, it will aim water at it and squirt it. I guess this won't work during the winter.
    • Red-eye thing: I guess you put a bunch of these solar powered contraptions around your property. At night, they have some sort of intermittant red light. This will, supposedly, freak out the predators. They gurantee that it will work. If anybody has any experience with this sort of contraption, please tell us about it in the critter care forum.


    chickens harvesting their own feed

    Ahhhh ..... I think this is where permaculture really shines.

    Imagine an area for the chickens which has en enormous mulberry tree dropping fruit throughout june, july and august. There is a plethora of clover, alfalfa, grains, sunflowers, buckwheat, peas and lentils in the more open areas. Fruit and nut trees are surrounded by siberian pea shrubs, chickweed, comfrey, dandelion, amaranth, nettles and sunchokes. Maybe some raspberries and blueberries are in the mix too. Assuming it is summer, why would a chicken eat dried up "chicken feed" with this bounty at hand?

    When raising chickens on a large scale, you generally raise your meat birds only in the summer. And you harvest your non productive layers in the fall. So most of your chicken feeding efforts are focused in the warmer months when your chicken feed crops can be producing prolifically.

    What, specifically, to grow depends on a lot of factors. How much room do you have; how cold does it get; what is your soil like; how much does it rain ....

    Some plants produce more food per acre per year than other plants. And some produce food for a just a week and others produce food for six months. The best producers appear to be mulberry trees (lots of fruit dropped constantly over three months) and wheat (when grown with the bonfils method). Sepp Holzer pushes a perennial rye and sunchokes as the core chicken/pig feeds.

    I advocate using the chicken paddock method. And along with that, I think that the lion's share of the people food should be grown in those same paddocks. A lot of the stuff we eat is great chicken food! And the chickens clean up anything we drop and anything we leave behind. Less waste.

    This is a good time to mention polyculture. All plant eating animals are designed to eat plants from a polyculture. They eat plants, not from rows and rows of the same thing, but from a mix of a dozen or more species. Every plant has special nutrient needs and every plant exudes an excess of nutrients that it mysteriously has superpowers to find/build/whatever. The mycelium in the soil has no leaves and depends on developing a bartering relationship with plants to get sugar. The mycelium offers nutrients. The sugar water from a carrot is loaded with nutrients that the carrot has in excess. The sugar water from an oak tree is loaded with something completely different. The carrot gets a bit of the oak excess and the oak gets a bit of the carrot excess. Because the oak's roots cover a bigger territory, it gets far more diversity than the carrot. And the oak ends up inadvertantly sharing some of that with the carrot.

    We have barely scratched the surface of what we know for human nutrition. And we have studied human nutrition ten thousand times more than chicken nutrition. Human nutrition is based on humans eating from a polyculture and eating the meat of animals that consumed from a polyculture. Rather than prending that we know all there is to know and growing things in a harshly organized fashion, I suggest that, instead, we grow things in a diverse polyculture of 50 or more species. I suspect that by doing this, the vegetation will become far richer in nutrients (both known and currently unknown) than if we attempt to infuse the soil with known nutrients. Diversity would include things that make for good chicken feed and things that make for good people feed. Rather than have an area for the chickens and an area for the people food, have one area for both (and many other purposes too).

    Since paddock shift systems tend to encourage five times more growth of vegetation, the result should be MORE people food than if chickens were not rotated through the area.

    For the winter, a lot of remaining grains and seeds will still be on their stalks. The taller stalks will eventually fall to the level chickens can get it. Winter apples will often stay on the trees deep into the winter. When they fall, they will keep for a long time on the ground. Kale can provide some winter greens. If chickens follow pigs in a rotation, pigs will often pull up sunchokes (and other tubers) and leave scraps for the chickens. Sepp Holzer has observed chickens eating the manures of other animals in winter. His son reports that they will provide feed to chickens only on the dozen coldest days of the year.

    (TODO)pig/trout/beef offal

    (TODO)raising bugs for chickens

    • earthworms
    • black soldier fly larvae
    • mealworms

    (TODO)the importance of organic feed

    Threads in the permaculture forums:



    chicken breeds for first timers

    I'm gonna go with "buff orpington".

    After you have a bit of experience raising chickens, I would recommend getting some chickens dedicated to laying eggs that you keep all year and in the warmer months you should be raising some chickens just for meat. More on these breeds later.

    There are lots of breeds that will be fine for a first timer. Buff Orpingtons are heavy (meaty; not gonna fly out of the paddock) and a good layer. People friendly. The roosters are quite the gentlemen to the hens. The hens go broody easy so you have a good chance of seeing some chicks the old fashioned way. I think most folks with experience with multiple breeds would give the same advice.



    chicken breeds for eggs

    When you start to get to a scale where you need a lot of eggs, you tend to want to optimize the feed-to-egg ratio: how much does it cost for you to get an egg? Do you pay more for feed than you get for the eggs? The meat-and-egg-combo breeds (like buff orpington) tend to not do as well as a lot of the egg breeds.

    The number one egg machine is the white leghorn. She lays white eggs.

    For brown eggs, the red star or black star are considered the best. These are also referred to as "sex link" because you can easily tell them apart as chicks.

    The rhode island red is a heavy bird with some reputation for laying. But there is some question as to the feed-to-egg ratio. And the rhode island reds are generally considered not as charming as the buff orpingtons. Euphamistically speaking.

    About fifteen years ago .... maybe more ... a guy had a mix of a lot of different chicken breeds and he started putting the biggest eggs into the incubator. Chicks would pop out, grow up, lay eggs, and the biggest eggs went back into the incubator. After about ten years of this the guy started selling the chicks. The "Braggs Mountain Buff" lays massive eggs. I'm not sure about the feed-to-egg ratio, but I suspect it isn't too bad.

    The egg breeds tend to be smaller and more likely to fly over a fence. They also tend to be more skittish around people. There is concern over the egg breeds having only one good egg laying year and then they are spent.

    More about chicken breeds for eggs



    chicken breeds for meat

    Most folks raise cornish rock cross.

    The first time I raised cornish rock cross, I was not prepared for ... how different it is to raise them. By harvest time I had a 30% mortality rate! I was sure I was somehow inadvertantly torturing these birds! After doing a lot of checking around, I found out that most people experience at 30% mortality rate. This breed grows so fast many suffer from broken legs and many have heart attacks. These birds grow so fast that there is a period of time at about six weeks of age when their feathers are in, but not completely and they look half plucked. This breed has no real interest in eating bugs, they would rather just hang their head into the feeder all day.

    As they approached their harvest date I told myself I would never raise these again. They are just too freaky. And the way they die at the drop of a hat is just too depressing.

    Harvest day came. And we ate one. It was the tastiest chicken of my life.

    So here's the upsides: Other breeds are generally harvested at about five months (21 weeks). These are generally harvested at about 8 to 9 weeks and when you harvest them, they are bigger. Half the time of having to care for them - that right there makes for half the hassle, half the predator problems, half the weather problems, half of ... a lot of things. The feed to meat ratio is excellent. And did I mention the flavor?

    Based on the first harvest, in my opinion, the downsides outweigh the upsides.

    This might be a good time to address an obvious solution for a lot of folks: why not just harvest layers that are not laying anymore or layers that turn out to be roosters? The answer is that you DO harvest those also. Those are generally considered soup birds because their meat is generally tough and has a stronger flavor. If you have a large egg business and you don't have a meat business, and you don't mind a tougher bird, then, sure, that would be a good way to go.

    For those that are looking for more meat, then meat breeds are the best path. I have two approaches to explore. 1) Go with the cornish-rock-cross and try to mitigate the downsides, or 2) Go with another breed.

    When it comes to an alternative breed, there are some breeds that turn out to be almost as big almost as fast. And thanks to Salatin's pastured poultry book, there is getting to be more demand for alternative breeds that not only get to the harvest size fast, but they are better foragers and less prone to heart attacks. While a cornish-rock-cross will reach "five pounds live weight" (the standard) in six to eight weeks, some of the alternatives claim nine weeks and some others claim nine to twelve weeks. More on alternative breeds here.

    There are people that raise cornish-rock-cross and get a mortality rate under 5%. I have been able to get it down to 15% and have a lot of ideas on getting it in line with those that get less than 5%.

    The first thing I've done is to never keep more than 25 cornish-rock-cross chickens in a pen (paddock) at a time. When it rains or gets cold they want to pig-pile on top of each other and the chickens at the bottom die.

    (something I have not tried yet) If they are in a paddock, cut back on their feed. Some people insist that you feed cornish-rock-cross twice a day, but make sure they run out of feed at least a few hours before you bring new feed. This keeps them from getting too heavy, too fast. I really don't like the idea of depriving a chicken of food since a chicken naturally eats every two hours. But ... in a paddock there is gobs of food if they just go and get it. So my thinking is that on the fourth week to feed them every twelve hours but just enough so that in three hours the food is gone. If they want more they will get it from the forage. And observe how it goes. If they do forage more, I might cut it back to once a day. I prefer the idea of leaving them a week's worth of food while they are in a paddock and they can eat all they want - but they prefer the forage. But the cornish-rock-cross doesn't seem to want to play that way.

    Enticing them from early on with bugs. When they are chicks they are active and they LOVE bugs! But when they get older they just want to hang their head in the feeder and not chase bugs. I raised a bunch of meal worms and fed them to the chicks with the idea of feeding them meal worms once a day for the first three weeks and then, hopefully, they would forage for their own bugs! Every time I brought them bugs they went wild for them. But I never got around to the part of monitoring how they did in the wild. My bad.

    More on raising cornish-rock-cross.



    raising chickens bits and bobs




    my crazy idea to come up with a better egg laying breed

    I hope to do this someday. If somebody wants to do it before me, go for it!

    The mission is to get a breed of chicken that will far prefer forage over standard chicken feed. So much so that the cost of feed could drop to zero. Other desirable attbitues include:

    • will stay within a portable electric net fence
    • easily broody
    • people friendly
    • three years of good laying
    • good winter forager

    The idea is to come up with a layer breed for the permaculture homesteader: Very easy and cheap. And the secondary idea is to have a business of selling chicks for $5 to $10 per chick. Currently, you can pay $1 per chick for a chicken you need to feed $100 worth of feed to get about $120 worth of eggs. Imagine a breed where you feed $10 worth of feed and get $120 worth of eggs! I know that I would be willing to pay $10 per chick for that! And getting $10 per chick is a lot better than getting 25 cents per egg.

    First, get lots and lots of chicken breeds (leghorn, rhode island red, red star, black star, buff orpington, braggs mountain buff ... anything that might have genetics that would work well with this) and let them mix plenty and have lots of chicks. Band the third generation and beyond (a band is a little plastic, numbered clip that goes on the leg of the chicken). Keep a log for each banded chick.

    Set up ten micro-paddocks that are loaded with good forage. Every five weeks put one hen in each micro-paddock. Try to make sure the paddocks are as equal as you can get. Carefully weigh the feed consumed and the weight of the eggs produced for one week. Then give the paddocks four weeks of rest.

    Each hen should get one round in the warm season and one round in the cool season.

    After the first year, the best two of each round is your breeding stock. But make sure that the winning hens from that first year get a chance for three years - more on that later. Make sure that you do not compare the april hens to the may hens - that would not be a fair comparison.

    For longer term results, make sure your champion hens get a chance to do the same for three years. Find out which hens are the champion performers for three years. It would be best to compare a three year old chamption hen to another three year old champion hen.

    I plan on writing lots more here. If this line is still here in september 2009 and you want to see more, drop me a line to remind me.

    (TODO)fencing options

    • burying fence is stupid
    • chicken wire vs. field fence
    • types of electric net. solar vs. plug-in.

    (TODO)controlling bugs in the garden with chickens

    (TODO)controlling bugs in pasture / food forest

    (TODO)controlling flies / mammal parasites

    (TODO)chickens in the city

    (TODO)chickens eat ten times a day

    (TODO)The chickens got out and ate all my strawberries!

    (TODO)wing clipping

    (TODO)How to tell if a layer is not laying



    Thanks!

    If you like this article, please link to me. Click on one (or many) of the social network links below. Linking to this article from a forum is nice. Or even better, mention this article in a blog!

    Many thanks!

    Share tiptheweb badge




Copyright © 1986-2012 (g+)
